Star Gold Slim Aluminium Windows: Modern Design Meets Accessible Pricing
Your entry point to ultra-slim aluminium systems. 19mm sightlines, German precision engineering, and residential-grade performance at entry-premium pricing.
Star Gold represents the perfect starting point for homeowners and builders who want modern aluminium aesthetics without ultra-premium pricing. With 19mm interlock sightlines, this system delivers dramatically slimmer profiles than traditional aluminium windows (typically 30-40mm) while maintaining robust structural performance.
Engineered for apartments, villas, and residential renovation projects, Star Gold supports panel sizes up to 2000mm width and 3600mm height – sufficient for the vast majority of residential applications. Multi-point locking, smooth roller operation, and powder-coated finishes in any color make this system a versatile choice for modern Indian homes.
Manufactured in Bangalore. Installed across South India.
Complete Technical Specifications
Star Gold Technical Data Sheet
Frame Dimensions:
- 2-Track Frame Width: 118mm
- 3-Track Frame Width: 173mm
- Frame Height: 28mm
- Interlock Sightline: 19mm (visible frame when closed)
Performance Specifications:
- Maximum Shutter Width: 2000mm
- Maximum Shutter Height: 3600mm
- Glass Thickness Range: 5mm to 20mm
- Roller Load Capacity: Up to 250kg per panel
- Wind Load Rating: 2 KPA (moderate to high wind zones)
- Locking Type: Multi-point (top and bottom)
Additional Features:
- Mosquito Net: Pleated type compatible
- Drainage: Integrated water outlet channels
- Weatherproofing: EPDM gasket sealing
- Hardware: Adjustable stainless steel rollers
Material Specifications:
- Aluminium Grade: 6063-T5 (architectural grade)
- Powder Coating: Marine-grade polyester
- Coating Thickness: 60-80 microns
- Color Options: 200+ RAL standard colors
Comparison with Other Star Series
Quick Reference Table
| Specification | Star Gold | Star Platinum | Star Diamond |
|---|---|---|---|
| Sightline | 19mm | 17mm | 17mm |
| Max Width | 2000mm | 3000mm | 3500mm |
| Max Height | 3600mm | 4500mm | 6000mm |
| Wind Load | 2 KPA | 2.8 KPA | 3.8 KPA |
| Price Level | Entry-Premium | Premium | Ultra-Premium |
Ideal Applications
Where Star Gold Delivers Maximum Value
Apartment Balconies Replace builder-grade sliding windows with slim modern aesthetics. Typical 1800mm to 2000mm width openings. Significant visual upgrade at reasonable cost.
Villa Bedrooms and Living Rooms Standard residential window sizes (1500-2000mm width, 1800-2400mm height). Create modern contemporary aesthetics. Smooth daily operation for years.
Residential Renovations Upgrade aging aluminium or wooden windows. Dramatic aesthetic improvement. Fits standard residential opening sizes without structural modifications.
Builder Projects Provide modern slim-profile windows in mid-range residential developments. Differentiate from standard builder windows. Attractive to discerning buyers.
Budget-Conscious Luxury Projects Deliver modern aluminium aesthetics where ultra-premium systems exceed budget. Excellent performance-to-price ratio for most residential applications.
Performance in Detail
How Star Gold Performs in Real-World Conditions
Wind Resistance (2 KPA Rating) Suitable for apartments up to 15-20 floors in non-cyclonic regions. Adequate for villas and low-rise buildings in coastal areas. For higher floors or extreme wind zones, consider Star Platinum or Diamond.
Weight Capacity (250kg) Supports single glazing (5-12mm) across all sizes. Supports double glazing (up to 20mm total) for openings under 1800mm width. Heavier configurations may require structural assessment.
Opening Size Limitations Optimized for openings under 2000mm width and 3600mm height. This covers 85-90% of residential window and door applications. For larger openings, Star Platinum or Diamond recommended.
Thermal Performance Standard aluminium construction (non-thermally broken). Best paired with Low-E glass in hot climates. For maximum thermal efficiency, consider thermally broken upgrade or uPVC alternative.
Acoustic Performance With double glazing (12mm+8mm air gap), achieves 30-32dB sound reduction. Adequate for most urban residential areas. For noise-critical applications near airports or highways, consider acoustic-laminated glass upgrade.
Color and Finish Options
Customize Star Gold to Match Your Aesthetic Vision
Solid Color Powder Coating
RAL 9016 Traffic White (most popular for residential) RAL 7016 Anthracite Grey (modern contemporary) RAL 9005 Jet Black (ultra-modern minimal) Custom RAL matching for architectural projects
Wood-Grain Effect Coating
Oak finish (traditional warmth) Walnut finish (rich brown tones) Teak finish (tropical aesthetics)
Metallic and Anodized Finishes
Champagne metallic Bronze anodized Titanium silver
Dual Color Option
Different colors for interior and exterior faces. Popular combination: white interior, grey or black exterior.
Installation Process
Professional Installation Ensuring Long-Term Performance
Step 1: Pre-Installation Site Assessment
Technical team visits site. Measures precise opening dimensions. Assesses structural conditions. Identifies any waterproofing or alignment issues.
Step 2: Custom Fabrication (3-4 Weeks)
Panels fabricated to exact measurements in Bangalore facility. Quality-controlled glass cutting and assembly. Powder coating in selected color.
Step 3: On-Site Installation (1-2 Days)
Removal of existing windows (if renovation). Structural preparation and waterproofing. Panel installation with precise alignment. Sealing and finishing work.
Step 4: Quality Check and Handover
Operation testing (smooth sliding, locking functionality). Weather sealing verification. Cleaning and final inspection. Customer walkthrough and care instructions.
Maintenance Requirements
Minimal Care for Maximum Lifespan

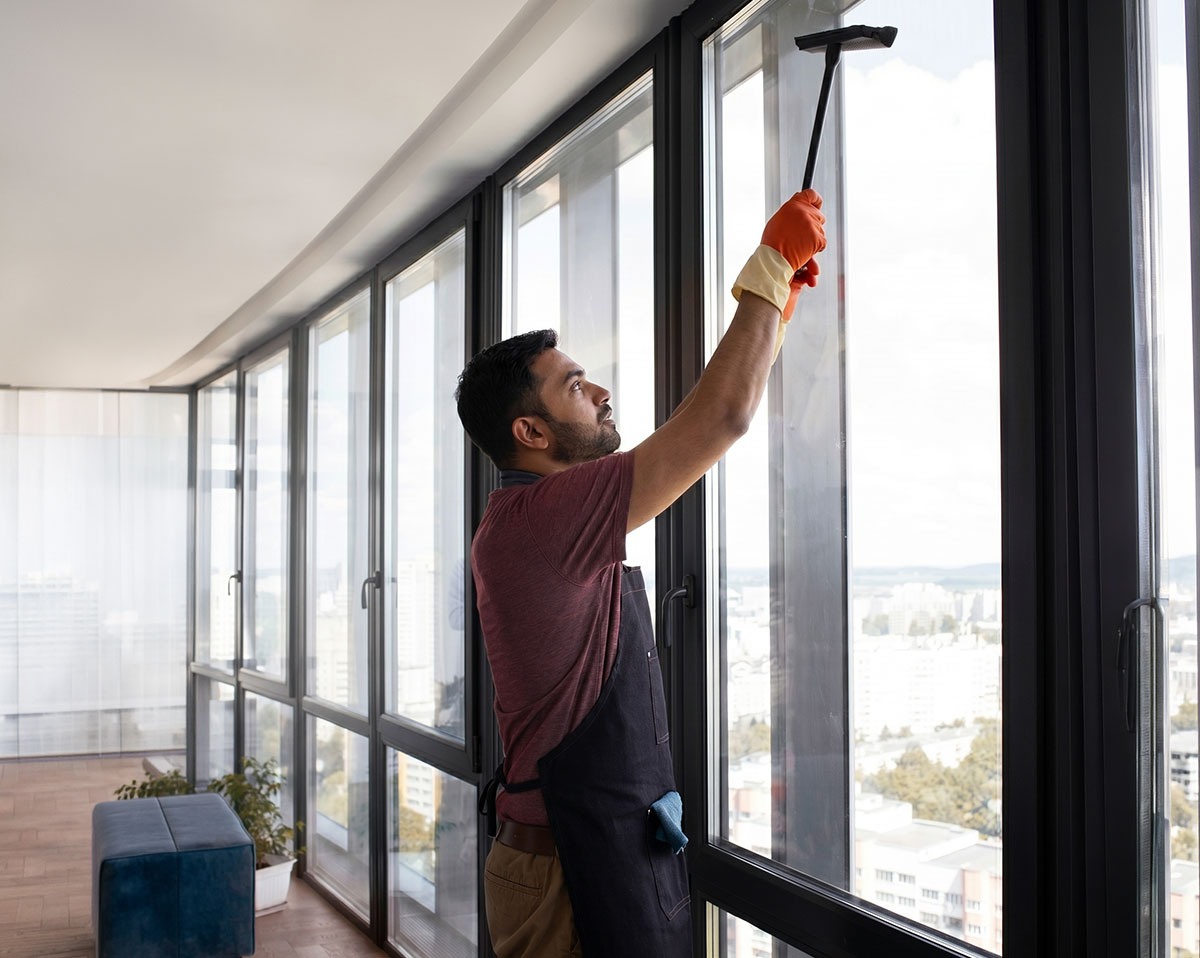

Monthly Tasks:
- Wipe frames with damp cloth
- Clean glass as needed
Quarterly Tasks:
- Clean drainage holes (monsoon months)
- Lubricate rollers and locking points
Annual Tasks:
- Inspect and clean roller tracks
- Check weather sealing condition
- Tighten loose screws if any
Professional Service (Every 5 Years):
- Complete roller mechanism inspection
- Weather seal replacement if needed
- Hardware adjustment and alignment
Warranty and Support
Backed by Factory Warranty and Service Network
Product Warranty:
- 10 years on aluminium profiles (structural integrity)
- 5 years on powder coating finish (no fading, peeling)
- 3 years on mechanical components (rollers, locks, handles)
- 1 year on glass (breakage due to installation defects)
Service Support:
- Bangalore: Direct factory service
- South India: Authorized service network
- Response time: 48 hours for service requests
- Spare parts availability: Guaranteed for 15 years
What Our Customers Say
Frequently Asked Questions
Is Star Gold suitable for a 10th floor apartment?
Yes, for most urban locations. The 2 KPA wind load rating is adequate for mid-rise apartments (up to 15-20 floors) in non-cyclonic regions. For coastal high-rises or upper floors (20+ floors), we recommend Star Platinum (2.8 KPA) or Star Diamond (3.8 KPA).
Can I install Star Gold myself to save costs?
We strongly discourage DIY installation. Improper installation voids warranty and commonly causes water leakage, operation issues, and premature wear. Professional installation ensures proper sealing, alignment, and long-term performance. Installation cost is typically only 10-15% of total project value.
What glass thickness should I choose for Star Gold?
For single glazing: 5-6mm for small panels, 8-10mm for larger panels. For double glazing and sound insulation: 12mm (5mm+7mm air gap) or 20mm (8mm+4mm air gap+8mm) depending on opening size. Our technical team will recommend optimal glass based on your specific panel dimensions.
How does Star Gold compare to uPVC windows?
Star Gold offers slimmer sightlines (19mm vs 30-35mm for uPVC), better suitability for larger openings, and modern commercial aesthetics. uPVC offers superior thermal insulation (3x better) and sound insulation (up to 40dB). For residential comfort (AC costs, noise), uPVC often better value. For aesthetics and large openings, aluminium wins. We manufacture both – happy to provide honest comparison for your specific needs.
What is the typical price for Star Gold installation?
Prices vary based on panel size, glass specifications, color selection, and quantity. As a rough guide, expect INR 800-1200 per square foot installed (including glass, hardware, and installation). Contact us for detailed quotation based on your specific requirements.
Can I upgrade from Star Gold to Star Platinum later?
No, the systems use different profile dimensions and cannot be directly swapped. Choose the appropriate system based on your complete project requirements from the start. If you’re unsure, our technical team can help assess which system best fits your needs and budget.
